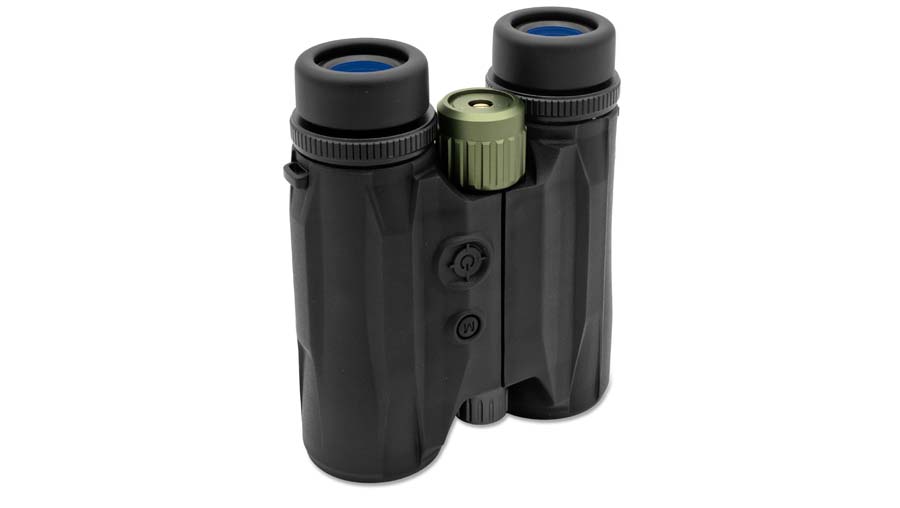

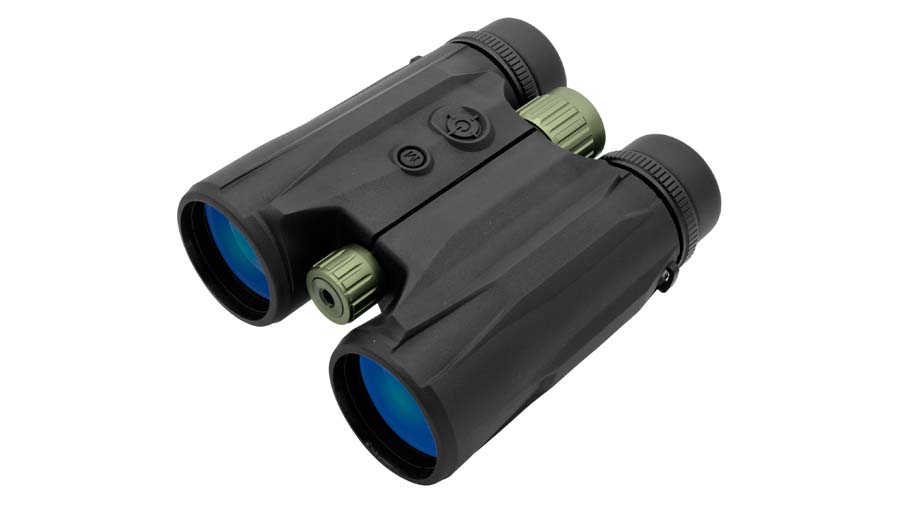

B5™ LRF Binoculars
Accurate Distance Measurement
- “One touch” operation
- Easy-to-read display
- Three modes of ranging:
- M1 – Linear mode
- M2 – Horizontal mode
- M3 – Vertical mode
- Super accurate ranging at distances up to 3 km
- High Definition optics w/ ED Red film/Non-ED Green film
- Eye-safe Class I laser; <1mW power
- Magnesium alloy/steel body
- Waterproof IP67/IP65
| B5 LRF | 10 x 42 | Magnification: | 10x |
| Objective Lens Diameter: | 42 mm |
| Objective: | 4E/4G |
| Eyepiece: | 5E/3G |
| Lens Coating: | FMC |
| Focus System: | Center |
| Eye Relief: | 15.5 mm |
| Exit Pupil Distant: | 18 mm |
| Field-of-View: | 6.1° |
| F.O.V at ft/1000 yds: | 321 |
| F.O.V at m/1000 m: | 107 |
| Min. Focus Distance: | 6 m |
| Twilight Index: | 21.2 |
| B5 LRF | 10 x 45 | Relative Brightness: | 20.25 |
| Diopter Adjustment: | ±5D |
| Interpupillary Distance: | 56-76 mm |
| Weatherproof: | Yes |
| Waterproof: | 1 m/30 min |
| Nitrogen Filled: | Yes |
| Twist Eyecaps: | Yes |
| Size: | 146 x 111 x 57 mm |
| Weight: | 810 g |
| Body Material: | Magnesium |
| Measuring Range: | 3000 m ±.5 m |
| Repetitive Rate: | ≤200 m, ±1 m ; ≥200 m, ±0.5% m |
| Battery Use: | CR2 |
