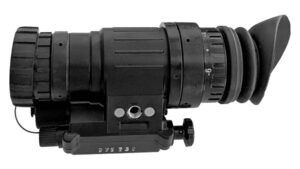

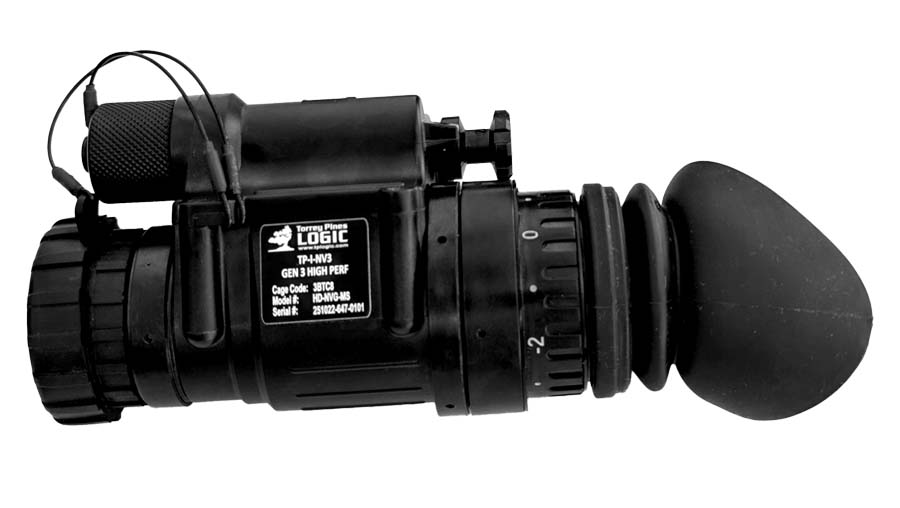

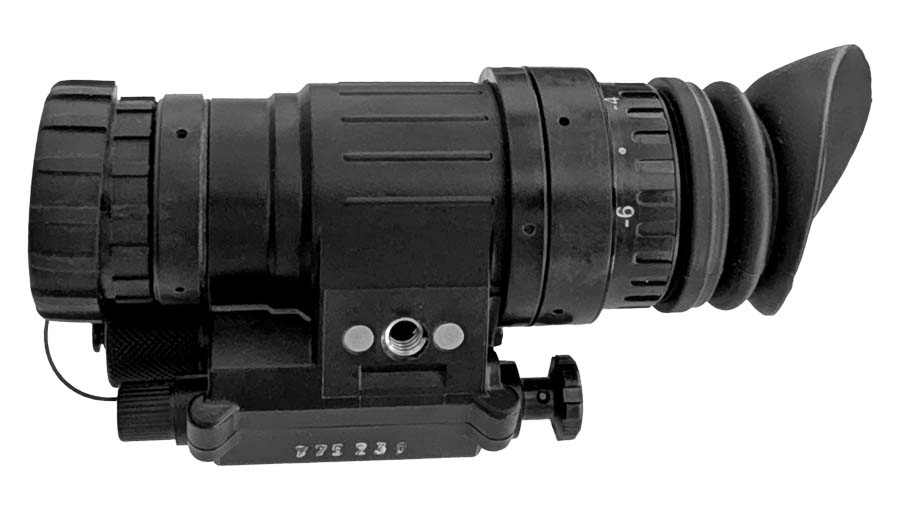

PVS-14
Night Vision Monocular
Features
- Combat proven
- Hand-held or head/helmet-mounted
- Manual Gain
- Weapon Mountable
- Built-in IR illuminator
- Simple controls
- Waterproof
- Lightweight & Rugged
- PVS-14 Night Vision Monocular
- Lens Cover
- 1 x f1 .12 Objective Lens
- Sacrificial Filter
- Rubber Eyecup
- Demist Shield
- Soft Case
- AA Battery
- Head Mount
- Lens Cleaning Cloth
- Head/Helmet Mount Adaptor
- Operating Manual
- 3, 4, 5x Afocal Lenses
- Day/Night Adaptor
- 10x Replacement Objectives
- Camera Adaptor
- Weapon Mount
- Phone Adapter
- Quick Release Weapon Mount
- Magnetic Compass
- Hard Storage Case
- External IR illuminators
System
| Magnification | 1x |
| Lens System | 26 mm f1.12 |
| FOV @ 1000 yds | 40° | 218 ft |
| Range of Focus | 10” to ∞ | 25 cm to ∞ |
| Diopter Adjustment | +2 to -6 |
| Waterproof | Mil-Std-810 Compliant to 66’ I 20 m |
| Camera Adaptable | Yes |
| IR Illuminator | Yes |
| Battery Type/Life | AA (x1) | 40 hours |
| Dimensions | 114 x 76 x 50.8 mm |
| Weight | 13 oz I 368 g |
| Operating Temperature | -40° to 125° F | -40° to +52° C |
| Warranty | 1 Year |
Image Intensifier
| Image Intensifier Tube | Generation 3 |
| FOM | 26 mm f1.12 |
| Resolution (Ip/mm) | 57-64 Ip/mm |
| Halo | .85 (Min) |
| Signal/Noise Ratio | 18.0 (Min) |
Zone Chart
| Max. Spots Allowed in Each Zone Spot Size (in.) | Zone | |||
| >.012 — .015 | 0 | 0 | 0 | |
| >.009 — .012 | 0 | 0 | 1 | |
| >.006 — .009 | 0 | 2 | 2 | |
| >.003 — .006 | 0 | 2 | 3 | |
