3x/6x Afocal Lens for NVG
for Night Vision
The 3x/6x Lens is an afocal magnification lens designed for use with the PVS-14 and Zero Lens to add nighttime engagement capability to ACOG and other daysights.
Its compact size allows it to be used as part of a small arms sighting system without interference concerns.
It can also be used as a direct replacement for the much larger and (75%) heavier A3256391 to reduce operator fatigue, improve CG, and increase the useful range of PVS-14 or PVS-7 goggle systems during head worn or helmet-mounted operations.
The lens surfaces are hard carbon coated and optimized for performance with Gen 2 and Gen 3 image intensification night vision systems.
| 3x | 6x | |
| FOV | 14° | 7° |
| F Number | 1.1 | 1 |
| Dimensions | 64 x 39 x 39 mm (2.5 x 1.5 x 1.5 in) | 70 x 44 x 44 mm (2.775 x 1.725 x 1.725 in) |
| Weight | 116 g (4.1 oz) | 240 g (8.5 oz) |
| Operating Temperature | -51° to +49° C (-60° to +120° F) | -51° to +49° C (-60° to +120° F) |
| Storage Temperature | -51° to +85° C (-60° to +185° F) | -51° to +85° C (-60° to +185° F) |

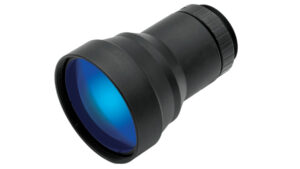

3x lens
