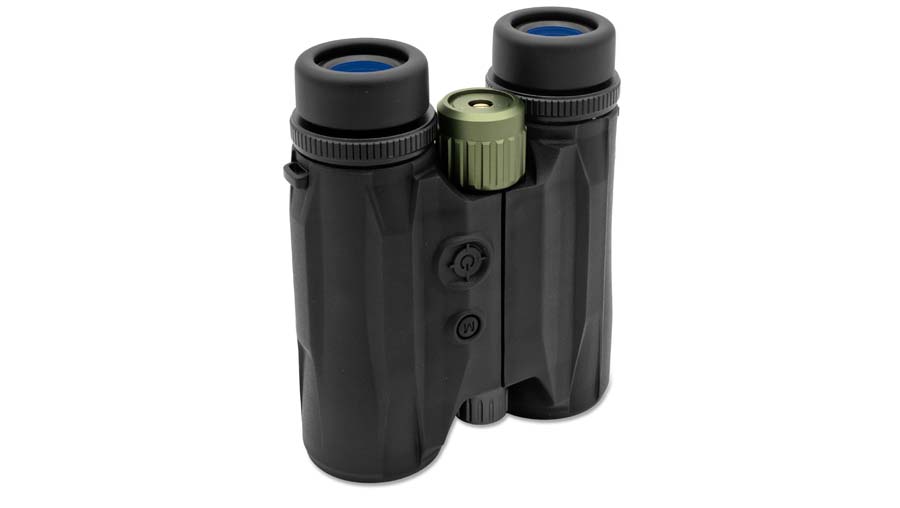

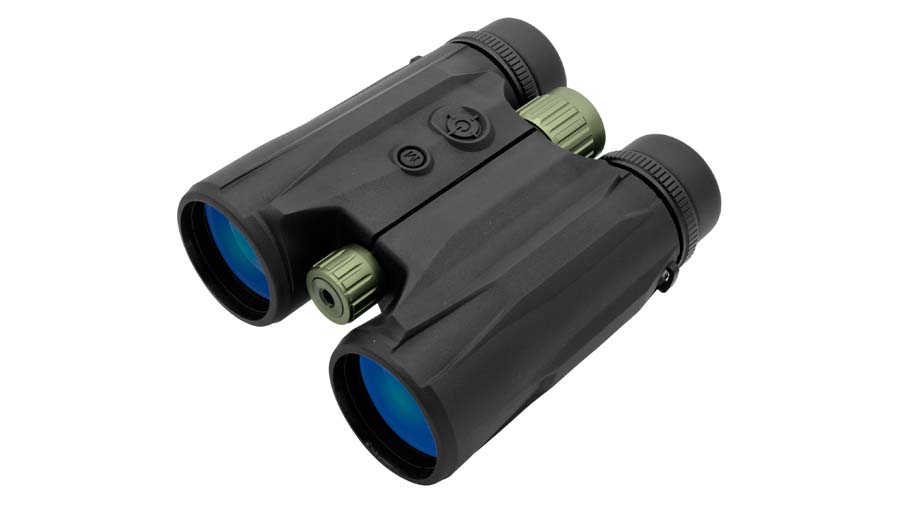

B5™ LRF Binoculars
Accurate Distance Measurement
- “One touch” operation
- OLED easy-to-read display
- Three modes of ranging:
- M1 – Linear mode
- M2 – Horizontal mode
- M3 – Vertical mode
- Super accurate ranging at distances up to 2 km
- Bright optics with 10x magnification
- Large prisms with phase and dieletric coating
- Magnesium body
| B5 LRF | 10 x 45 |
| Magnification: | 10x |
| Objective Lens Diameter: | 45 mm |
| Objective: | 4E/4G |
| Eyepiece: | 5E/3G |
| Lens Coating: | FMC |
| Focus System: | Center |
| Exit Pupil Diameter: | 4.5 mm |
| Exit Pupil Distant: | 18 mm |
| Field-of-View: | 6.2° |
| FOV at ft/1000 yds: | 326 |
| FOV at m/1000 m: | 108 |
| Min. Focal Distance: | 5 m |
| Twilight Index: | 21.2 |
| B5 LRF | 10 x 45 |
| Relative Brightness: | 20.25 |
| Diopter Adjustment: | ±3dpt |
| Interpupillary Distance: | 56-76 mm |
| Weatherproof: | Yes |
| Waterproof: | 1 m/15 min |
| Nitrogen Filled: | Yes |
| Twist Eyecaps: | Yes |
| Dimension: | 157 x 137 x 67 mm |
| Weight: | 920 g |
| Body Material: | Magnesium |
| Measuring Range: | 2000 m |
| Repetitive Rate: | ≤200 m, ±1 m ; ≥200 m, ±0.5% m |
| Battery Use: | CR2 |
